Right shaft of the rotor drive reducer with flange 669605 suitable for Claas

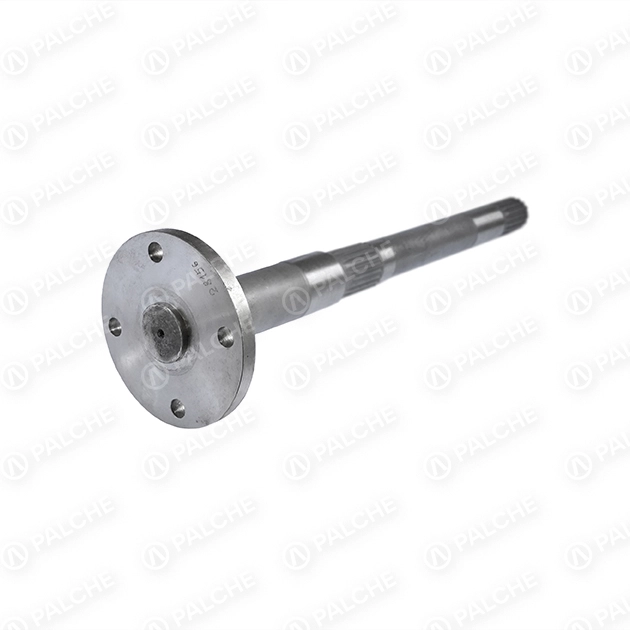

Shaft (right) of the rotor drive of Claas Lexion combine harvesters.
Length - 520 Shaft diameter - 50
Number of splines - 18
Catalog number: 669605.
EM numbers Right shaft of rotor drive reducer with flange 669605 suitable for Claas
Claas
0006696050
0006696050
669605
000669605
669605.0
0006696050
Application Right shaft of rotor drive reducer with flange 669605 suitable for Claas
Claas combine harvester:
CAT LEXION 480R
LEXION 480
LEXION 480 TERRA
LEXION 485
LEXION 485 R
LEXION 580
LEXION II 480 II
LEXION II 480 MTS II
Parameters
Weight, W kg 7.8
Outer diameter, D mm 150
Number of splines, F 18
Number of mounting holes, N 4
Diameter of mounting holes, Dm mm 15
Length, L mm 520
Outer diameter, D1 mm 44
Shaft diameter, Ds mm 50
Shaft diameter, Ds1 mm 40
Number of splines 1, F 21
Shaft diameter, Ds2 mm 39
Outer diameter, D2, mm , D2 mm 39
Length 2, L2 mm 520
Parameters may differ from actual
